Why Choosing the Right 36 in Glass Shower Door Matters More Than You Think
A 36 in glass shower door is one of the most popular sizes for residential bathrooms — and for good reason. It fits the standard 36-inch alcove shower perfectly and is wide enough to feel open without overwhelming a smaller bathroom.
But here’s the thing: not all 36-inch shower doors are the same. The type, glass thickness, hardware, and whether your walls are perfectly plumb all affect which door will actually work in your space.
Quick answer — here’s what to know before you buy:
- Standard size: 36 inches wide x 72–78 inches tall
- Glass thickness: 1/4 in (6mm) for framed, 3/8 in (10mm) for premium frameless
- Common door types: Pivot/swing-out, bifold, sliding, or fixed panel
- Actual walk-in clearance: A 36-inch swing-out door gives you roughly 34.5 inches of usable entry space
- Key requirement: Walls must be checked for plumb — many off-the-shelf doors offer zero adjustment for out-of-plumb walls
- Threshold minimum: At least 3/8 inch wide to support a frameless 10mm glass door
- Best for tight spaces: Bifold or sliding configurations
- Best for a modern look: Frameless pivot or fixed panel designs
Whether you’re upgrading a dated tub-to-shower conversion or finishing a brand-new bathroom remodel, the right door makes a big difference — in how the room looks, how easy it is to clean, and how long it lasts.
This guide walks you through every option so you can make a confident, informed choice.
Understanding the 36 in glass shower door: Standard Dimensions and Specifications
When shopping for a 36 in glass shower door, the term “36-inch” usually refers to the width of the rough opening rather than the exact width of the glass sheet itself. Because houses settle and tiles are rarely perfectly straight, you need to understand the structural boundaries of your shower alcove before purchasing hardware.
Standard heights for these doors typically range from 72 inches to 78 inches. For example, entry-level and mid-range retail doors often sit at 72 inches tall, while premium options stretch to a more dramatic 78 inches to showcase high ceilings and minimize water overspray.
However, height isn’t your only consideration. You must also account for:
- The Walk-In Clearance: A standard 36-inch swinging door does not actually yield 36 inches of entry space. Because of the hinges, protective vinyl sweeps, and hardware profiles, your actual walk-in clearance is closer to 34.5 inches.
- The Threshold Width: Heavy glass doors require a sturdy, flat surface to sit on. A premium frameless door made of 10mm (3/8 inch) tempered glass requires a minimum threshold width of 3/8 inches to distribute the weight safely.
- Out-of-Plumb Walls: This is the ultimate dealbreaker for DIYers. If your walls lean inward or outward by even a fraction of an inch, a rigid, non-adjustable retail door will not seal properly. Before buying, we always recommend completing these 3 things to do before buying a glass shower door to save yourself from costly ordering mistakes.
Below is a quick reference table comparing standard retail specifications for 36-inch openings:
| Specification | Standard Retail (Lightweight) | Premium / Architectural (Heavy Glass) |
|---|---|---|
| Common Width Range | 33 to 36 inches (with adjustable tracks) | Exactly 36 inches (or custom fabricated) |
| Standard Height | 72 inches | 78 inches |
| Glass Thickness | 1/4 inch (6mm) | 3/8 inch (10mm) |
| Average Weight | 45 to 60 lbs | ~100 lbs |
| Out-of-Plumb Adjustment | Up to 1.5 inches (via wall profiles) | Zero adjustment (requires perfectly plumb walls) |
| Hinges & Hardware | Aluminum tracks or lightweight brackets | Solid brass or stainless steel clamps |

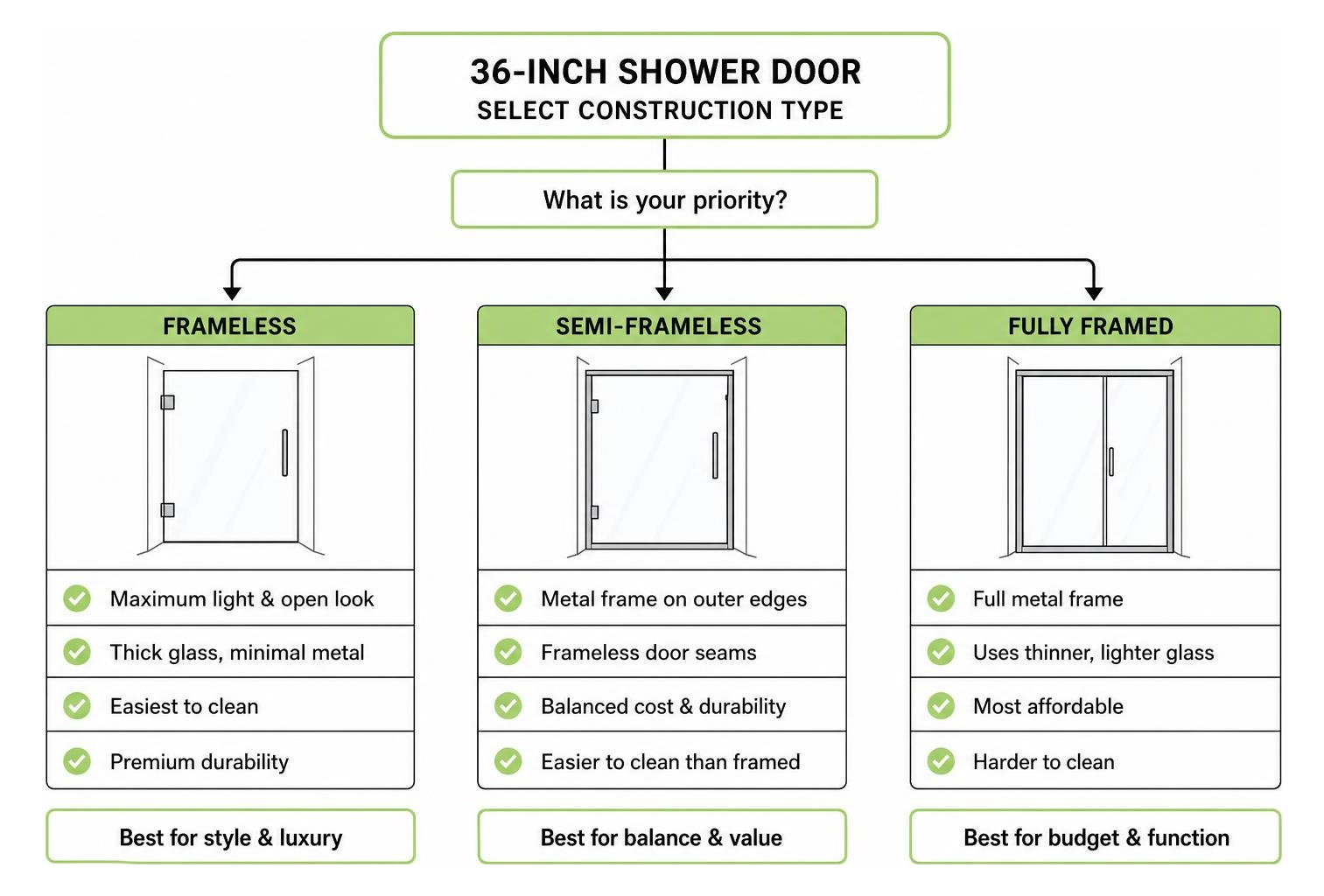

Comparing Frameless, Framed, and Configurable 36-Inch Shower Doors
The overall construction style of your 36 in glass shower door dictates how much light flows through your bathroom, how difficult the door is to clean, and how long the assembly will survive daily wear and tear.
Frameless Designs
Frameless doors are the gold standard of modern bathroom design. They eliminate bulky metal borders entirely, relying instead on heavy, thick glass and heavy-duty metal clamps anchored directly into your studs. Choosing a frameless layout highlights beautiful tile work and instantly makes compact bathrooms feel twice as large. To understand why this style has taken over the market, explore the benefits of frameless glass shower doors and the structural 3 advantages of glass shower walls.
Framed and Semi-Framed Designs
Framed options feature aluminum or steel channels surrounding all sides of the glass panel. Because the metal frame provides structural rigidity, these doors can use much thinner, lighter, and more affordable 1/4-inch glass. Semi-frameless doors offer a middle ground, featuring a metal frame around the outer perimeter of the shower opening but leaving the swinging seams frameless. While budget-friendly, metal frames create overlapping tracks where water, soap scum, and hard water minerals pool, making them notoriously tedious to keep clean.
Choosing a 36 in glass shower door with a Pivot or Swing-Out Design
For a 36-inch opening, a pivoting or swing-out door is one of the most reliable and classic layouts. Pivot doors utilize specialized hinges mounted at the very top and bottom corner of the glass, allowing the door to rotate smoothly. Because the weight is transferred directly to the floor threshold rather than pulling horizontally on the wall studs, pivot hinges reduce the risk of the door sagging over time.
Many premium pivot doors feature self-closing hinges, which gently pull the door shut once it comes within a few inches of the threshold, keeping water safely inside.
If you prefer a minimalist, spa-like aesthetic and don’t want a swinging door at all, a fixed glass panel is an incredible alternative. For instance, the 36 in. W x 78 in. H Single Panel Radius Fixed Frameless Shower Door is a stationary screen that leaves a portion of the shower open for a walk-in “wet room” configuration. These fixed screens use premium 3/8-inch (10mm) glass and rely on heavy-duty wall clips and structural silicone to remain completely stable. You can learn more about configuring these open-concept spaces by reading about our custom glass shower panels.
Space-Saving Bifold and Sliding Options for a 36 in glass shower door
While swinging doors are elegant, they require plenty of clearance space in front of the shower. If your bathroom layout places the toilet, vanity, or bathroom door directly in the swing path of a 36-inch door, you need a space-saving alternative.
This is where bifold and sliding doors excel:
- Bifold Shower Doors: A bifold mechanism uses a hinged middle seam that allows the glass panels to fold inward on themselves like an accordion. For example, the 36-37.5 in. W x 72 in. H Frameless Bifold Shower Door with 1/4 in. Thick Clear Glass in a Brushed Nickel Finish. features hinges that rotate up to 180 degrees. This allows the door to fold completely out of the way, giving you maximum entry clearance without swinging out into your bathroom floor.
- Sliding Doors: While traditional bypass sliding doors are typically reserved for wider openings (48 to 60 inches), compact sliding doors can be custom-engineered for 36-inch openings. These utilize a single sliding panel that glides behind a fixed panel on a heavy overhead roller track. To find out if a rolling door is right for your layout, check out our guide on sliding shower doors.
Glass Thickness, Hardware Finishes, and Key Features
When selecting your 36 in glass shower door, the technical details of the glass and metal hardware will directly impact its safety, style, and how much elbow grease you’ll need to keep it sparkling.
Glass Thickness and Safety
Shower glass is categorized by its thickness, which dictates how solid and premium the door feels when you open it:
- 1/4 Inch (6mm): The standard entry-level thickness. It is lightweight, cost-effective, and highly common in framed or bifold doors. It must be supported by a metal frame to prevent excessive flexing.
- 5/16 Inch (8mm): A great mid-range option that offers a sturdier feel without the extreme weight of heavy glass.
- 3/8 Inch (10mm): The industry standard for premium, high-end frameless doors. At this thickness, a single 36″ x 78″ panel weighs roughly 100 lbs. It feels incredibly solid, does not shake or rattle, and is entirely self-supporting.
Regardless of the thickness you choose, ensure the glass carries the SGCC (Safety Glazing Certification Council) stamp. This certification guarantees that the glass has been properly tempered. If tempered safety glass does break, it crumbles into tiny, harmless pebbles rather than shattering into dangerous, razor-sharp shards.
Hardware Finishes and Style
Your hardware finishes tie the shower enclosure into the rest of your bathroom design. The most popular options include:
- Matte Black: Bold, modern, and highly resistant to showing fingerprints.
- Chrome / Polished Stainless Steel: Classic, highly reflective, and affordable, though it requires frequent wiping to prevent water spots.
- Brushed Nickel / Brushed Bronze: Warm, understated finishes that hide water spots and soap scum exceptionally well.
To customize your shower further, you can explore specialized glass textures. While clear glass is the most popular choice for maximizing light, textured options like rain glass—such as the 30-3/8 in. x 63-1/8 in. x 1/4 in. (6mm) Frameless Pivoting Shower Door Glass Panel in Rain (For 33-36 in. Doors)—provide excellent privacy while naturally concealing water spots.
Easy-Clean Coatings and Accessories
Modern glass technology has made cleaning much less of a chore. Look for glass treated with factory-applied hydrophobic coatings like EnduroShield. This invisible protective barrier repels water, soap scum, and grime, reducing your glass cleaning time by up to 90%.
To elevate your setup even further, check out the latest shower glass accessories and explore cutting-edge shower glass innovations to see how modern engineering keeps glass looking brand new for years.
Measuring, Installation, and Frequently Asked Questions
Installing a glass shower door is a game of millimeters. One bad measurement can result in a door that leaks, scrapes against the tile, or worse, shatters during installation.
The Golden Rule: Measure After Tile
Never, under any circumstances, measure your shower opening based on raw drywall or rough framing. You must wait until your finished tile, grout, and shower base are completely installed. Even a thin layer of tile and thinset mortar can shrink your opening width by half an inch or more.
DIY vs. Professional Installation
While installing a lightweight, 1/4-inch framed door is a manageable weekend project for a handy homeowner, installing a heavy, 10mm frameless door is a completely different beast. Handling a 100-pound sheet of glass requires specialized suction cups, precise alignment, and at least two strong people. Furthermore, frameless doors rely heavily on mold-resistant, structural silicone to secure fixed panels. If applied incorrectly, you risk structural failure or persistent water leaks.
If you are planning a bathroom update in the Chicago area, opting for a professional affordable shower door installation ensures a perfect, leak-free fit. And if you are replacing an old, leaky metal door, our team can handle the entire replace glass shower door process seamlessly.
Does a 36-inch shower door allow for out-of-plumb wall adjustments?
The short answer is: it depends entirely on the design.
If you buy a standard, heavy-glass frameless pivot door (like the popular ULTRA-E Chrome or Glass Warehouse models), they typically offer zero out-of-plumb adjustment. Because the hinges mount directly to the wall, your walls must be perfectly straight (90 degrees) for the door to close and seal. If your walls lean or bow, you will end up with huge gaps where water can escape.
On the other hand, framed, semi-frameless, or bifold doors that utilize wall profiles and tracks can adjust for out-of-plumb walls by up to 1.5 inches. The metal channel hides the uneven gap, allowing the glass to sit straight. If you suspect your walls aren’t perfectly square, take a look at these 6 glass shower door questions to help diagnose your layout before ordering.
What is the actual walk-in clearance for a 36-inch swing-out door?
For a standard 36-inch swinging door, your actual walk-in clearance is approximately 34.5 inches.
This minor reduction in width is perfectly normal. The vertical hinges, wall clamps, and magnetic vinyl water seals require a small amount of clearance to operate without rubbing. When planning your bathroom layout, make sure this 34.5-inch opening is wide enough for comfortable daily use and matches your accessibility needs.
What is the minimum threshold size required for a 36-inch frameless door?
To safely support a heavy, frameless 36-inch glass door, your shower curb or threshold must be at least 3/8 inches wide (though 2 to 3 inches is ideal for standard curbs).
The threshold must be completely flat, level, and structurally capable of supporting heavy glass panels weighing up to 100 lbs. If you are installing the door on a lightweight fiberglass or acrylic shower pan, you must ensure the pan has built-in wooden or metal reinforcement beneath the threshold to prevent the glass from cracking the fiberglass over time.
Conclusion
Choosing the perfect 36 in glass shower door comes down to balancing beauty, space constraints, and structural reality. While off-the-shelf retail doors are highly tempting for their quick shipping and lower upfront price tags, they leave almost no room for error if your walls are slightly tilted or your measurements are off by a fraction of an inch.
