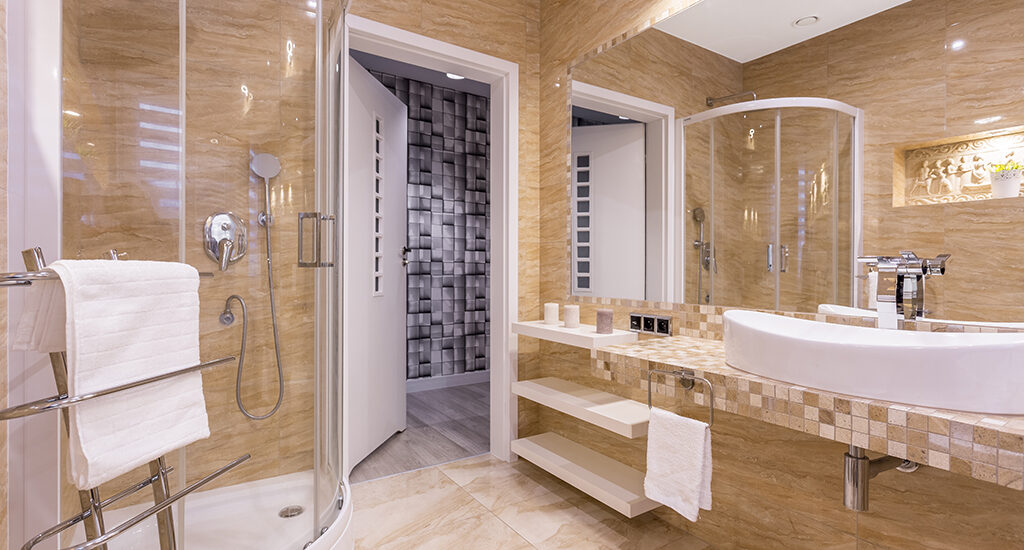

Find the Right Bathroom Shower Enclosure Near You

When comparing bathroom shower enclosures near me, choose a local glass specialist who measures your space in person, offers tempered safety glass, and can custom-fit panels to tiled walls, uneven floors, and your preferred door layout. Frameless glass creates the most open look, while semi-frameless and framed options can suit different bathroom designs and installation needs.

A custom enclosure can make a Chicago bathroom feel brighter, easier to clean, and better suited to the room’s exact dimensions. The next sections explain how to compare enclosure styles, glass options, installers, and leak-prevention details before you commit.

Basic bathroom shower enclosures near me vocab:

• 36 in glass shower door
• 36 x 42 glass shower enclosure
• bathroom with shower enclosure

Types of Glass Shower Enclosures Available

Selecting the right glass setup transforms your morning routine and elevates your entire space. When exploring options, you will generally encounter three primary configurations: frameless, semi-frameless, and fully framed. Each design delivers unique functional characteristics, aesthetic lines, and mounting profiles. For a detailed breakdown of layouts, check out our comprehensive guide to shower door types.

Frameless glass enclosures represent the modern standard for luxury bathrooms. These systems eliminate bulky aluminum framing, relying instead on heavy structural glass secured by discreet wall clips and precision hinges. Because there are no metal channels to collect soap scum and moisture, frameless systems are exceptionally hygienic and simple to maintain. They maximize the flow of natural light, making compact layouts feel expansive while showing off intricate tilework.

Semi-frameless enclosures offer a hybrid approach. These units feature perimeter framing around the exterior structure for added rigidity, while the operating door panel remains frameless. This combination pairs clean sightlines with structural support, making it an excellent choice for a variety of layouts.

Fully framed enclosures utilize metal profiles around every edge of the glass panels and doors. These systems provide exceptional water containment and a classic look that works well in traditional homes.

Feature	Frameless Enclosures	Semi-Frameless Enclosures	Fully Framed Enclosures
Glass Thickness	3/8″ or 1/2″ heavy safety glass	1/4″ to 3/8″ tempered glass	1/4″ tempered glass
Visual Aesthetic	Seamless, airy, modern minimalism	Balanced frame with open door edges	Classic, well-defined perimeter borders
Cleaning Effort	Easiest (no metal channels)	Moderate (clean perimeter channels)	Regular maintenance along frame tracks
Hardware Profiles	Wall clips, pivots, or header bars	Exterior perimeter channels & hinges	Full perimeter & panel extrusion frames
Door Configurations	Pivot, hinged, or rolling barn-style	Hinged, pivot, or sliding bypass	Sliding bypass, bi-fold, or pivot

Door operation also plays a critical role in your daily layout. Hinged and pivot doors swing outward (and sometimes inward), requiring adequate clearance in front of the shower footprint. For tighter footprints where vanities or toilets sit close to the opening, sliding bypass doors or sleek rolling barn-door systems glide effortlessly along an upper track, saving valuable floor space.

Choosing the Best Glass and Hardware Options

The quality of your glass and metal hardware dictates how your shower looks, feels, and performs over the years. We craft our units using premium architectural materials tailored to your specific taste. You can explore a variety of residential shower door options to match your fixtures.

• Tempered Safety Glass: Tempered safety glass is heat-treated to be four to five times stronger than standard annealed glass. If impacted severely, it breaks into small, dull granules rather than dangerous, jagged shards, ensuring total compliance with residential safety codes.
• Ultra-Clear Low-Iron Glass: Standard clear glass contains a subtle greenish tint along the edges due to natural iron content. Low-iron glass removes this tint, offering absolute crystal-clear transparency that reveals the true color of your marble, quartz, or designer tile.
• Frosted and Patterned Glass: Acid-etched or frosted glass adds visual texture while providing enhanced privacy without blocking light transmission.
• Protective Hydrophobic Coatings: Factory-applied hydrophobic treatments bond with the microscopic pores of the glass surface. This creates an ultra-smooth barrier that repels water, prevents mineral staining from hard water, and reduces routine cleaning time.
• Corrosion-Resistant Hardware: Moisture-rich environments require robust metals. High-grade brass and stainless steel components finished in matte black, brushed nickel, polished chrome, or satin brass ensure lasting mechanical operation and resist pitting or rust.

Finding the Best Bathroom Shower Enclosures Near Me

When upgrading your bathroom, working with a local professional guarantees an exact fit and smooth execution. A neighborhood glass fabricator understands regional architectural styles, local building requirements, and the distinct characteristics of homes in our area. Selecting an expert for an affordable shower door installation ensures that your heavy glass panels are balanced, secure, and properly sealed.

Local glass artisans manage the entire installation journey in person. Rather than relying on standard retail kits that require you to force pre-cut glass into spaces that may not be square, a dedicated specialist visits your home, verifies structural framing, and custom-cuts every panel. This precision eliminates gaps, reduces stress on hinges, and delivers flawless door alignment.

Why Search for Custom Bathroom Shower Enclosures Near Me?

Standard retail enclosures assume every bathroom has plumb walls, level thresholds, and square 90-degree corners. In real homes—especially older residences—walls shift, settle, and bow over time. When tiles are laid, slight variations in mortar bed thickness can cause walls to tilt out of plumb.

Opting for custom shower door options solves these structural challenges:

1. Digital Laser Templating: We capture the exact micro-angles of your shower opening, mapping out surface dips, out-of-square walls, and floor slopes.
2. Custom Glass Scribing: During fabrication, glass edges are precision-cut and polished to follow the exact slope and contour of your wall, eliminating unsightly gaps.
3. Plumb Hinging Solutions: If an entrance wall is significantly out of plumb, we can install a fixed, scribed glass panel against the wall so your swinging door hinges from a perfectly true, level glass-to-glass connection.
4. Tailored Enclosure Heights: Custom cutting allows you to extend glass panels closer to the ceiling or match exact vanity heights, giving your remodel an intentional, high-end feel.

What to Look For When Comparing Bathroom Shower Enclosures Near Me

Choosing the right local installation team requires evaluating craftsmanship, service standards, and accountability. Protect your home investment by vetting potential glass contractors using the following criteria:

• In-Home Consultations: Reliable installers evaluate your bathroom layout in person, review hardware finishes against your fixtures, check wall studs, and confirm structural backing before ordering glass.
• Project-Based Quotes: Clear, project-based scopes ensure you understand all deliverables without surprise adjustments or hourly rushes.
• Flexible Financing Options: Look for fabricators who offer convenient payment structures and financing plans to make high-end remodels manageable.
• Specialized Glass Experience: Glass handling requires specialized lifting gear, diamond polishing machinery, and precise mounting methods. Verify that the company focuses specifically on heavy architectural glass.
• Workmanship Warranties: Reputable installers stand behind their mechanical hardware, seals, and installation alignments with comprehensive warranty coverage.

Before hiring a local installer, ask these critical questions:

• Do you use in-house master installers or subcontract the work?
• Do you employ digital laser templating to measure my shower opening?
• Is your heavy glass tempered to meet all local building codes?
• What hardware finishes and protective coatings do you offer?
• How do you address out-of-plumb walls and out-of-level shower curbs?

Technical Considerations: Installation, Leak Prevention, and Timelines

A successful shower installation balances clean aesthetics with structural integrity and water management. If your current unit is outdated, leaking, or showing mineral damage, scheduling professional shower door replacement services revitalizes the space quickly.

Once your design is finalized and measurements are gathered, the custom glass is tempered and fabricated. On-site installation is efficient, with our technicians taking care to protect your bathroom surfaces throughout the visit. After setting the panels, anchoring the heavy-duty hinges, and applying commercial-grade mildew-resistant silicone, the sealant must cure undisturbed for a full 24 hours before the shower is used.

How to Prevent Water Leaks in Glass Enclosures

While frameless glass units feature open, seamless edges, proper planning ensures your bathroom floor stays dry:

• Showerhead Orientation: Direct spray heads toward tiled walls or fixed glass panels rather than pointing them directly at the door seams.
• Raised Threshold Curbs: Maintain a pitched shower curb (sloping roughly 3/16-inch inward toward the drain) to encourage water to flow back into the shower pan.
• Bottom Drip Sweeps: Install an ultra-clear polycarbonate sweep with a deflector fin on the bottom edge of swinging doors to channel water runoff away from the gap.
• Side Bulb Seals and Magnetic Catches: Use discreet translucent seals along vertical door jambs to stop splashing without compromising the frameless look.
• Continuous Silicone Beads: Apply structural, mildew-resistant silicone along the interior and exterior perimeter of all stationary panels to lock out moisture.

Complementary Custom Glass and Remodeling Services

A local glass specialist can coordinate multiple custom architectural elements across your home to create a unified design:

• Custom Vanity Mirrors: Custom-cut, beveled, or framed mirrors sized precisely above double vanities or integrated with LED backlighting.
• Glass Railings: Modern interior stair rails and exterior balcony glass panels that maintain open views and enhance safety.
• Shower Remodels and Pan Upgrades: Upgrading composite shower bases, low-profile thresholds, and curb transitions to complement new glass doors.
• Architectural Glass Partitions: Bespoke interior glass walls, office dividers, and wine room enclosures that let natural light travel throughout the home.

Frequently Asked Questions About Local Shower Enclosures

How long does the custom shower enclosure installation process take?

The entire journey—from the initial in-home measurement and consultation to the final install—typically takes one to two weeks. Custom fabrication, edge polishing, and the tempering process account for most of this timeline. The physical on-site installation usually wraps up within four to six hours for standard configurations, though intricate multi-angle enclosures may take a full day. You will need to wait 24 hours after installation for the silicone seals to cure before turning on the water.

Can a glass enclosure be installed if my bathroom walls are uneven?

Yes. Custom glass fabricators use digital laser measuring tools to map the exact contours of out-of-plumb walls. The glass panels are then custom-cut and polished along matching angles to fit flush against the tile. For severe variances, a fixed glass panel can be scribed to the uneven wall, creating a plumb vertical glass edge from which the shower door can swing smoothly.

What is the difference between 3/8-inch and 1/2-inch shower glass?

Both options consist of heavy tempered safety glass designed for structural strength without perimeter metal frames. Glass measuring 3/8-inch is the industry standard for frameless showers, balancing rigidity and manageable weight on hinges. Glass measuring 1/2-inch is heavier, providing a substantial, premium feel with maximum structural stiffness, which makes it ideal for extra-tall enclosures or expansive architectural panels.

Conclusion

Upgrading your bathroom with a custom glass enclosure adds everyday luxury, simplifies routine cleaning, and enhances the lasting appeal of your home. Whether you prefer the sleek lines of a modern frameless system, the balance of a semi-frameless unit, or a classic sliding door, partnering with a local specialist guarantees tailored craftsmanship and an exact fit.

At JP Precision Glass, we deliver precision, made-to-size solutions, premium hardware, and dedicated service. We take the time to evaluate your walls, recommend the right glass thickness and coatings, and install your new enclosure with care. Schedule your in-home consultation today for custom shower doors in Chicago and let our team bring your vision to life.

Inspiring Bathroom Shower Door Ideas to Transform Your Space

The best bathroom shower door ideas balance your room layout, lighting, and daily routine. Choosing the right design instantly opens up your space and eliminates visual clutter:

• Ultra-Clear Frameless Doors: Use low-iron glass to eliminate green tints and maximize visual space.
• Crittall-Style Black Grid Doors: Add bold, architectural lines for an industrial or modern farmhouse look.
• Sliding Barn-Door Rollers: Save valuable floor clearance in tight bathrooms using smooth, top-hung rollers.
• Minimalist Pivot Doors: Deliver a clean, seamless look for classic alcove openings.
• Fluted or Frosted Glass: Diffuse sightlines for privacy while keeping natural daylight flowing.
• Doorless Walk-In Screens: Create an accessible, barrier-free wet room with a single stationary panel.
• Neo-Angle Corner Enclosures: Maximize awkward corner footprints to prevent collisions with vanities or toilets.

Whether you are updating a compact guest bath or designing a custom primary suite, matching the right door mechanism to your room dimensions makes all the difference.

Glossary for bathroom shower door ideas:

• glass shower doors
• glass shower doors replacement
• 24 inch glass shower door

7 Sleek Bathroom Shower Door Ideas for Modern Homes

Upgrading your shower enclosure is one of the single most impactful changes you can make during a remodel. Replacing an old, cloudy framed slider or a clingy vinyl curtain with custom glass instantly reshapes your bathroom into an open, spa-like sanctuary. To help you determine the best layout for your home, our glass shower doors: a comprehensive guide to types comparison breaks down how various glass profiles interact with natural light, tiled walls, and room footprints.

Below, we explore seven leading design concepts shaping modern residential interiors this year.

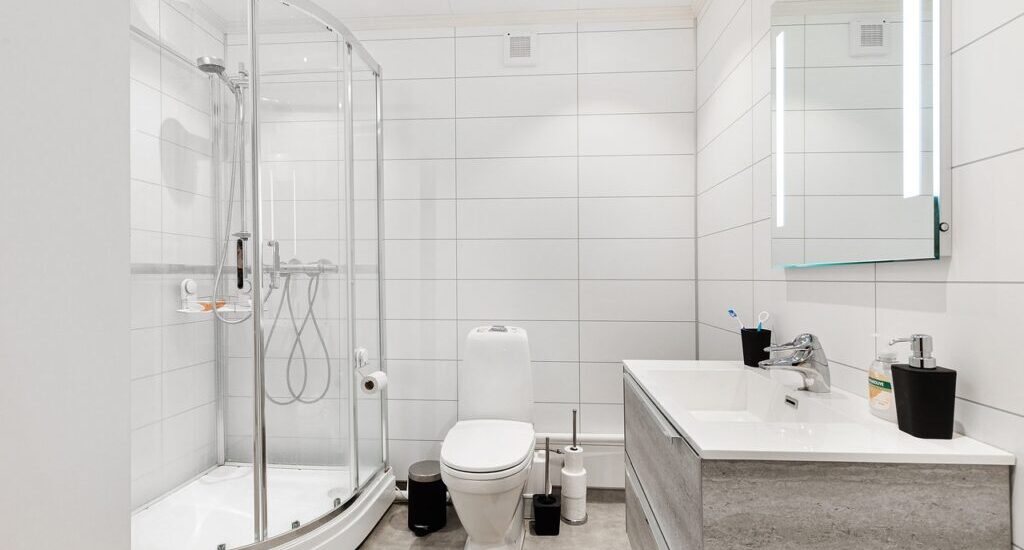

1. Ultra-Clear Frameless Glass Shower Doors

Frameless clear glass remains the gold standard of contemporary bathroom design. By eliminating bulky metal framing along the perimeter, frameless enclosures provide uninterrupted sightlines that extend across the entire room. This transparency allows your interior tilework—whether luxurious Calacatta marble, handcrafted zellige, or rich slate—to take center stage.

To achieve maximum visual clarity, we often recommend low-iron glass (such as Starphire). Standard architectural clear glass naturally contains trace amounts of iron oxide, which imparts a subtle greenish tint visible along cut edges or against pure white backdrops. Low-iron glass drastically reduces this iron content, delivering true color rendition and crystal-clear transparency.

Exploring the architectural benefits of frameless glass shower doors reveals that their minimal hardware leaves fewer places for moisture, mineral scale, and soap scum to collect, making daily cleaning significantly simpler.

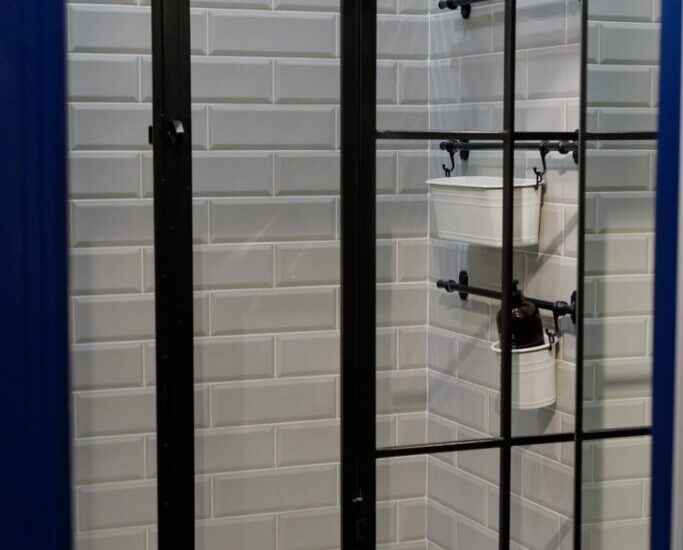

2. Crittall-Style Industrial Black-Framed Grid Doors

For homeowners seeking striking visual contrast and structure, Crittall-style black-framed grid doors provide an unmistakable architectural statement. Originating from historic steel-framed glazing, modern interpretations utilize lightweight, rust-resistant matte black aluminum framing or durable ceramic silk-screened grids applied directly to tempered safety glass.

These black geometric mullions pair effortlessly with concrete vanities, white subway tiles, brushed gold plumbing fixtures, and exposed pipe accents. If you love industrial chic or modern transitional decor, an external grid enclosure introduces bold verticality and drama while retaining light distribution throughout the shower interior.

3. Space-Saving Sliding Roller Barn Door Systems

Traditional sliding enclosures frequently relied on heavy, rattling floor tracks that trapped dirt and required constant scrubbing. Modern sliding barn-door shower systems reimagine this mechanism with precision-engineered, top-hung roller hardware.

Heavy tempered glass panels hang securely from an overhead stainless steel bar, utilizing exposed wheels that glide effortlessly. A low-profile, trackless floor guide at the base keeps the panels aligned without creating an awkward step-over metal channel. Modern sliding shower doors are ideal for tighter bathrooms where swinging doors might collide with vanities, toilets, or linen towers.

4. Minimalist Pivot Bathroom Shower Door Ideas for Alcoves

When working with classic alcove showers, pivot doors offer clean functionality with minimal visible hardware. Unlike continuous side-mounted piano hinges, pivot systems utilize top and bottom hinges anchored directly into the wall stud, curb, or ceiling header.

This hardware placement creates a clean, floating appearance and distributes weight evenly. If you have an alcove opening, a 36 inch frameless or pivot shower door delivers a substantial opening clearance while maintaining a minimalist profile. For compact standard alcoves, tailored pivot mechanisms maximize entry width even in tight spaces.

5. Fluted and Frosted Privacy Bathroom Shower Door Ideas

If your bathroom is shared across a busy household, complete transparency might not fit your daily routine. Fortunately, modern privacy glass provides modesty without sacrificing light flow:

• Fluted / Reeded Glass: Features vertical rounded convex ribs that distort direct sightlines while reflecting light across tactile textures.
• Acid-Etched / Sandblasted Frosted Glass: Creates a smooth, matte translucent surface across the entire glass panel.
• Partial Modesty Bands: Positions a frosted horizontal band across the torso zone while leaving the top and bottom panels crystal clear.
• Slumped / Cast Glass: Formed in specialized ceramic molds to produce organic textures resembling ocean waves, falling rain, or stratified stone.

These textured panels soften ambient light, prevent heavy glare, and introduce tactile richness to minimalist interiors.

6. Doorless Walk-In Showers with Fixed Glass Screens

Doorless walk-in showers—often integrated into European-style wet rooms—eliminate movable doors entirely. Instead, a single, structural stationary glass panel shields adjacent vanity areas from splashing while leaving an open entryway.

Creating a successful doorless design requires careful spatial planning. Floor tiles must slope gradually toward a linear or center drain, and rainfall showerheads should be positioned far enough from the opening to prevent splashing. Incorporating sturdy glass shower panels provides barrier-free, zero-threshold accessibility, creating a seamless transition across the room’s continuous tile flooring.

7. Curved and Neo-Angle Glass Shower Enclosures

Corner showers often present tricky spatial challenges, especially in square guest bathrooms where adjacent fixtures leave little room to spare. Neo-angle and curved glass shower enclosures solve this by clipping off the sharp 90-degree corner:

• Neo-Angle Enclosures: Feature a three-panel configuration (two fixed side panels set at 45-degree angles flanking a central swinging door). This angled layout keeps foot-traffic lanes clear around toilets and sinks.
• Curved Glass Corner Units: Utilize smooth, bent tempered glass that glides on curved tracks, eliminating angular corners altogether.

These configurations maximize interior showering elbow room while keeping the exterior footprint compact and efficient.

Glass Thickness, Safety Standards, and Layout Planning

Building codes require all residential shower enclosures to be constructed from tempered safety glass. Annealed flat glass undergoes an intense thermal heating cycle followed by rapid high-pressure air cooling. This process creates high surface compression, making tempered glass roughly four times stronger than standard glass.

In the rare event that tempered glass breaks, it shatters into thousands of small, blunt, pebble-like granules rather than sharp, dangerous shards.

Comparing 3/8-Inch vs. 1/2-Inch Tempered Safety Glass

When planning a custom frameless enclosure, selecting the correct glass thickness is a vital engineering choice.

Feature / Metric	3/8-Inch (10mm) Tempered Glass	1/2-Inch (12mm) Tempered Glass
Primary Application	Standard frameless doors, inline panels, sliding setups	Oversized custom panels, tall steam showers, luxury suites
Structural Rigidity	Excellent structural integrity for standard door sizes	Superior rigidity; eliminates panel flex on tall spans
Weight Profile	~5.0 lbs per square foot	~6.6 lbs per square foot
Hardware Demands	Standard heavy-duty solid brass hinges & wall clamps	Heavy-duty commercial hinges; requires structural stud blocking
Aesthetic Feel	Sleek, clean, and unobtrusive	Substantial, vault-like luxury feel

While 3/8-inch glass remains the industry standard for most residential frameless doors, 1/2-inch glass delivers a rock-solid, luxurious feel for tall glass enclosures and sprawling open walk-ins.

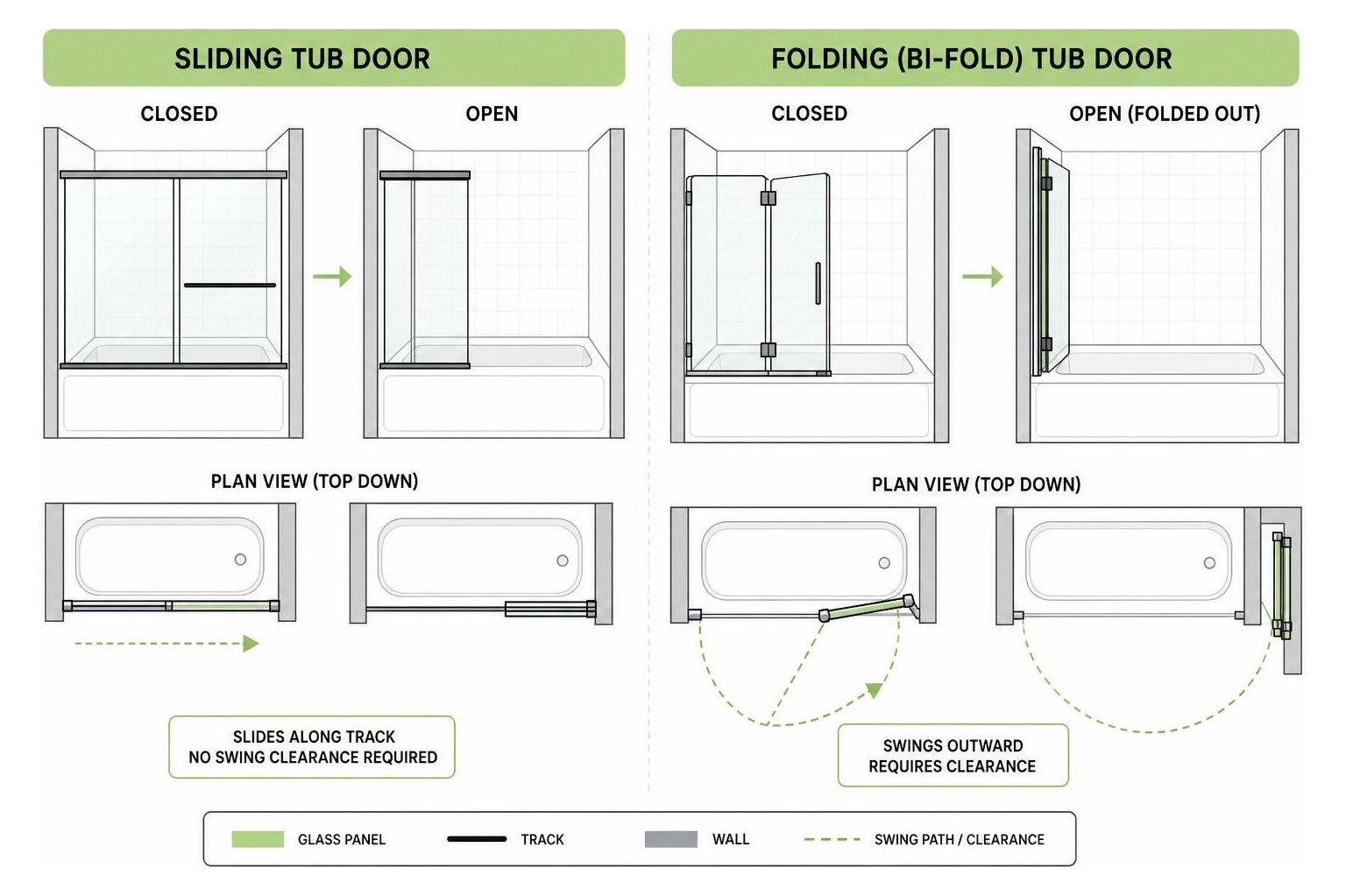

Space-Saving Configurations for Small Bathrooms and Tub Combos

You don’t need a sprawling primary suite to enjoy custom glass. If your layout features a bathtub/shower combination, replacing a curtain with a fixed glass splash shield or hinged bath screen modernizes the entire room.

Reviewing how to choose the perfect glass tub enclosure for your bathroom helps you explore configurations such as bi-fold tub screens and pony-wall (half-wall) mounted glass. Anchoring stationary glass securely to a tiled half-wall keeps plumbing or custom benches neatly integrated while maintaining an open, airy feeling above.

Hardware Finishes and Low-Maintenance Glass Care

The hardware holding your glass panels together acts as the jewelry of your bathroom. To prevent corrosion in humid environments, always choose components forged from solid brass or marine-grade stainless steel.

Hardware Trends: Matte Black, Brushed Brass, and Polished Chrome

Coordinating your glass hardware with your plumbing fixtures, vanity pulls, and vanity mirrors ensures a cohesive design:

• Matte Black: Provides sharp architectural contrast against light tile and anchors industrial or modern farmhouse aesthetics.
• Brushed Brass & Warm Gold: Adds inviting warmth, pairing beautifully with natural wood vanities, zellige tile, and transitional spaces.
• Polished Chrome & Brushed Nickel: Timeless, versatile, and highly reflective, chrome complements cool marble, gray porcelain, and classic subway tile.

Hydrophobic Protective Coatings and Daily Maintenance Tips

Untreated glass is naturally porous at a microscopic level. Over time, hard water minerals, soap residues, and body oils settle into these microscopic peaks and valleys, causing cloudy mineral hazing that ordinary cleaners cannot remove.

A factory-applied hydrophobic protective coating chemically bonds to the glass surface, sealing microscopic pores and creating an ultra-smooth, water-repellent barrier. Water and soap bead up and roll off the surface rather than clinging to the glass. Discovering recent shower glass innovations shows how treated glass cuts down cleaning time significantly.

Daily Care Best Practices:

1. Squeegee After Every Shower: A quick 30-second wipe down with a rubber squeegee eliminates lingering water droplets before they evaporate and leave mineral spots.
2. Use pH-Neutral Cleaners: Clean weekly using a soft microfiber cloth and a mild solution of water and pH-neutral dish soap.
3. Avoid Abrasives: Never use steel wool, abrasive scouring powders, or harsh ammonia-based glass sprays on treated protective coatings.

Frequently Asked Questions About Shower Doors

What type of shower door makes a small bathroom look bigger?

A clear frameless glass shower door makes a small bathroom appear larger by eliminating visual barriers. Because clear glass lets light move freely across the entire space and keeps your back wall tile in view, the eye perceives the room as one continuous, open area.

Should a shower door open inward or outward for safety?

Building codes generally require swinging shower doors to open outward into the bathroom. This ensures an occupant can safely exit or receive assistance in an emergency without being blocked by an inward-swinging panel. Many custom pivot hinges also feature dual-swing operation, allowing the door to swing both inward to contain drips and outward for easy egress.

How do hydrophobic glass coatings prevent hard water stains?

Hydrophobic coatings create a permanent molecular bond that fills the microscopic pores on the surface of raw glass. By creating a slick, water-repellent surface, the coating forces water to bead up and sheet off cleanly. This prevents calcium, magnesium, and soap scum from bonding to or chemically etching into the glass panel.

Conclusion

Choosing the right shower door transforms your daily routine and elevates your entire bathroom. Whether your aesthetic calls for the crisp transparency of ultra-clear frameless glass, the striking structure of Crittall-style black grids, or the smooth functionality of modern sliding barn rollers, tailored glass design makes all the difference.

At JP Precision Glass, we specialize in designing, customizing, and installing made-to-measure glass enclosures built to your exact specifications. Every bathroom features unique angles, tile variations, and spatial considerations. Explore our wide range of custom shower doors and let our team help you create a beautiful, durable glass enclosure tailored perfectly to your home.

Key Features and Benefits of an 860 Pivot Shower Door

An 860 pivot shower door is designed to maximize entry space while maintaining a sleek, modern architectural aesthetic. The defining feature of a pivot door is its hinge mechanism. Unlike continuous piano hinges that run the full height of the frame, pivot hinges mount at the top and bottom corners of the door panel. This design transfers the door’s weight directly into the top and bottom wall profiles or floor structure, creating an exceptionally smooth, quiet swing.

The 860mm width offers remarkable flexibility. It is an ideal middle ground for standard bathroom layouts—significantly more spacious than narrow 700mm doors, yet compact enough to fit comfortably into tight floor plans where a massive 900mm or 1000mm door would create spatial conflicts.

Key advantages of choosing an 860mm pivot enclosure include:

• Generous Door Opening Width: Because pivot hinges can be offset slightly inward from the side frame, they open wide to provide a comfortable, clear entryway (often over 500mm of usable clearance).
• Flexible Layout Configuration: Pivot doors work exceptionally well in three-wall alcove setups. When paired with a matching glass side panel, they easily transform into a stunning corner shower enclosure.
• Superior Water Containment: Precision-engineered magnetic closing strips and durable bottom drip seal strips create a tight barrier against escaping water, keeping your bathroom floor dry even when paired with high-flow showerheads.
• Reversible Design: Most quality 860mm pivot frames feature symmetrical wall profiles, allowing us to install the door to swing open from left-to-right or right-to-left depending on your room layout and fixture placement.

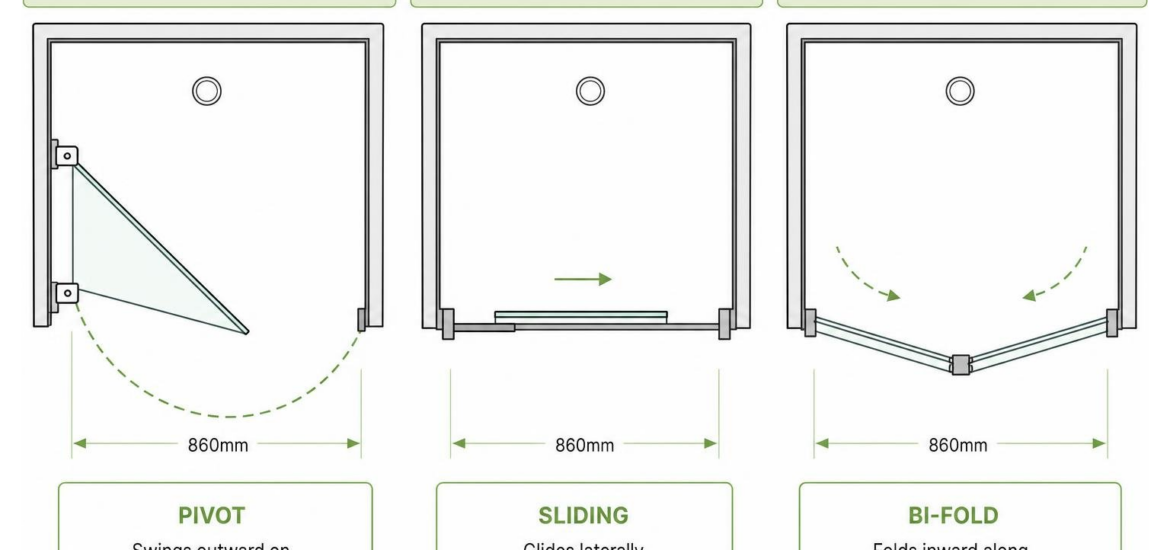

To help you decide whether a pivot door is the right mechanism for your layout, here is how an 860mm pivot shower door compares to other common enclosure styles:

Feature / Benefit	860mm Pivot Shower Door	Sliding Shower Door	Bi-Fold Shower Door
Opening Mechanism	Swings outward on top/bottom pivot pins	Glides laterally on tracks	Folds inward along a center hinge
Entryway Width	Very Wide (maximizes opening relative to frame)	Moderate (limited by overlapping glass panels)	Wide (folds neatly away)
Mechanical Durability	High (few moving parts to wear out)	Moderate (rollers and tracks require cleaning)	Moderate (multiple hinge pivots and guides)
Cleaning Ease	Extremely Easy (flat glass surface, no bottom tracks)	Moderate (dirt can accumulate in bottom guide tracks)	Moderate (multiple hinge seal joints to clean)
Outward Clearance Needed	Yes (requires space in front of shower)	None (operates entirely within frame envelope)	None (folds inside the enclosure footprint)

Standard Dimensions and Glass Thickness for an 860 Pivot Shower Door

When specifying an 860 pivot shower door, height and glass thickness are two essential factors that dictate both safety and performance.

Standard heights for pivot enclosures typically range between 1850mm and 1900mm. Selecting a taller 1900mm profile provides enhanced splash protection, keeping elevated water spray contained within the cubicle—a particularly useful feature if you prefer ceiling-mounted rain showerheads.

For the glass itself, 6mm thermally toughened safety glass represents the optimal structural balance for an 860mm door. Thermally toughened glass undergoes a specialized heating and rapid cooling process that makes it up to five times stronger than standard annealed glass.

Using 6mm glass ensures:

1. Structural Balance: It provides structural integrity and a solid, premium weight feel without overloading the pivot pin hinges.
2. Effortless Operation: Heavier 8mm or 10mm glass panels require heavy-duty architectural hardware; 6mm glass keeps the swing lightweight and smooth for family members of all ages.
3. Safety First: In the rare event of damage, toughened safety glass fractures into tiny, blunt granular pieces rather than dangerous sharp shards.

Frame Finishes and Glass Coatings for an 860 Pivot Shower Door

The overall look and long-term maintenance of your shower enclosure depend heavily on the frame finish and surface treatments applied to the glass.

Modern pivot shower doors come in several high-durability hardware finishes to complement your bathroom taps and fixtures:

• Polished Chrome: A classic, timeless mirror-like finish that reflects light and matches traditional or contemporary brassware.
• Matt Black: A bold, modern finish crafted via powder coating or electroplating. It creates sharp architectural contrast against white tiling or marble walls.
• Brushed Brass: A warm, luxurious finish that introduces subtle texture and pairs beautifully with earthy stone tiles and neutral color palettes.

Beyond visual appeal, pay attention to practical surface protection. High-quality 860mm pivot glass panels come treated with an anti-limescale glass coating (often referred to as an easy-clean protective shield). This hydrophobic coating seals the microscopic pores of the glass surface, repelling water droplets, soap scum, and limescale buildup. Instead of clinging to the door, water glides off effortlessly, drastically reducing cleaning frequency and eliminating stubborn water spots.

Comparing 860mm Pivot Doors to Alternative Enclosure Styles

Understanding how spatial dynamics differ across door types helps ensure you select the best fit for your room.

The primary operational detail of a pivot door is its outward swing radius. When the door opens, it swings into the bathroom space. You must ensure that nearby fixtures—such as a vanity, towel radiator, or toilet—do not block the swing path.

When compared directly to Sliding Shower Doors, pivot doors offer a much wider physical opening for the exact same width. Sliding doors require one fixed glass panel for the door panel to glide behind, effectively halving your usable entry space. On an 860mm frame width, a sliding door might only yield 350mm to 400mm of entry clearance, whereas an 860mm pivot door provides a roomy entry opening exceeding 500mm.

Compared to bi-fold mechanisms, pivot doors feature fewer moving mechanical joints. Bi-fold doors fold inward on themselves, which is excellent for spaces with zero outward floor clearance, but the additional hinges, plastic seal joints, and top/bottom runner channels require more frequent cleaning.

If you are looking to maximize visual openness and eliminate bulky metal framing altogether, exploring the Benefits of Frameless Glass Shower Doors is a fantastic option. Frameless or semi-frameless pivot designs allow natural light to flow uninterrupted across the bathroom, making smaller ensuites feel significantly larger.

Choosing the Right Shower Tray and Key Safety Features

Pairing your 860 pivot shower door with the right shower tray ensures long-lasting watertight performance and reliable underfoot safety.

When selecting a shower tray, consider these technical factors:

• Built-in Anti-Slip Surface: Wet tile surfaces and smooth tray bases can become slick. Premium shower bases feature textured non-slip surface technology. Look for trays tested under official safety standards, such as the BS 7976:2 Pendulum Slip Test. While standard building regulations require a minimum slip-resistance score of 35, high-performance anti-slip trays can achieve pendulum scores over 70, offering extraordinary traction underfoot.
• Composite Tray Materials: Modern shower trays utilize advanced mineral resins or aerospace-grade composite materials. These composite trays are up to 60% lighter than traditional stone resin bases while maintaining immense structural rigidity and impact resistance.
• Low-Profile vs. Raised Mounting: A low-profile tray (typically 25mm to 40mm high) offers a modern, step-free threshold that integrates seamlessly into timber floors. However, if you are installing on a solid concrete floor where plumbing pipes cannot be recessed beneath the floorboards, choose a raised tray kit with leg sets and removable plinths to comfortably accommodate under-tray waste pipework.
• High-Flow Waste Systems: Pivot shower doors allow full water flow across the enclosure footprint. To prevent water pooling inside the tray, pair the tray with a rapid high-flow waste system capable of clearing at least 32 liters per minute.

Installation Considerations and Maintenance Best Practices

Proper installation guarantees a watertight enclosure and smooth, quiet door operation for years to come. Whether you are installing a standard kit or choosing custom solutions like our Shower Door Replacement Chicago services, paying close attention to site preparation is key.

Essential Installation Adjustments

1. Alcove Alignment and Adjustment Ranges: Bathrooms are rarely perfectly square. High-quality shower door wall profiles offer built-in lateral adjustment (typically 15mm to 20mm per side) within the vertical channels. This allows us to compensate for out-of-plumb walls without leaving unsightly gaps.
2. Tiling Allowance: Always measure your opening after tiling is completely finished. Tile thickness and adhesive layers can easily reduce an 860mm rough opening by 15mm to 25mm.
3. Reversible Hanging: Verify the swing orientation before securing the wall profiles. Depending on towel bar locations and light switches, reversing the pivot block placement lets you choose whether the door swings left or right.

Maintenance Best Practices

To keep your pivot door operating smoothly and looking crystal-clear, adopt a quick maintenance routine:

• Daily Squeegee Routine: Wipe down the inner glass face with a soft rubber squeegee after every shower to prevent mineral deposits from drying on the glass.
• Microfibre Care Routine: Clean the aluminum wall profiles and hardware with warm water and a soft microfibre cloth. Avoid harsh abrasive chemicals, bleach, or scouring pads, which can degrade protective anodized or electroplated hardware finishes.
• Inspect Magnetic Seals: Clean the bottom drip vinyl fins and magnetic door closures monthly to prevent soap residue buildup. If seals eventually harden or discolor after years of heavy use, you can easily Replace Glass Shower Door vinyl seals to restore a factory-fresh watertight fit.
• Check Pivot Pins: Periodically check the top and bottom pivot hinge screws to ensure they remain tightened to spec, guaranteeing perfect alignment over time.

Frequently Asked Questions About 860mm Pivot Shower Doors

How much opening clearance is needed for an 860mm pivot shower door?

Because an 860mm pivot door swings outward into the room, you should allow at least 500mm to 600mm of clear, unobstructed floor space directly in front of the shower door. Always check that the door will not strike vanities, toilets, heated towel rails, or bathroom entry doors when fully opened.

Can an 860mm pivot shower door be installed in an alcove?

Yes! Alcove installation (a three-solid-wall setup) is the most popular installation method for an 860mm pivot door. The door frame mounts securely between two opposite tiled walls, utilizing adjustable wall channels and vertical continuous magnetic seals to create a completely watertight shower room.

What factors influence the cost and quality of an 860mm pivot door?

Key quality factors include:

• Glass Specification: Thermally toughened safety glass with pre-applied anti-limescale coatings.
• Hardware Materials: Heavy-duty brass or aluminum pivot blocks versus plastic core hinges.
• Frame Engineering: Thickness and adjustability of wall profiles, as well as high-grade magnetic vinyl seals.
• Customization: Standard off-the-shelf sizes versus precision custom-cut glass designed to fit custom openings perfectly.

Conclusion

An 860 pivot shower door combines spatial efficiency, smooth mechanical operation, and sleek modern design. Whether you are building an alcove shower setup or replacing an old enclosure, choosing quality 6mm toughened safety glass, durable metal finishes, and a high-performance anti-slip base ensures your bathroom remains safe, comfortable, and stylish for years to come.

At JP Precision Glass, we pride ourselves on precision craftsmanship, made-to-size custom glass solutions, and flawless professional installation. If you are planning a bathroom renovation or need expert advice on sizing and glass specifications, explore our full range of custom solutions for Shower Doors Chicago today!

3×5 Walk-In Shower Ideas That Make a Small Bathroom Feel Bigger

A 3×5 walk-in shower gives you a full 36-by-60-inch bathing area, the same footprint as many standard tubs. The strongest 3×5 walk in shower ideas use clear glass, a recessed niche, light tile, and a smart drain plan to make those 15 square feet feel open rather than cramped.

For a sleek, practical remodel, start with these proven directions:

1. Choose a frameless sliding door or fixed glass panel to preserve sightlines and avoid swing-door clearance issues.
2. Use a curbless entry and linear drain for a clean, modern look with better aging-in-place potential.
3. Install a recessed niche between studs so bottles stay off the floor and out of your elbow room.
4. Run large-format wall tile to the ceiling, or continue the bathroom floor tile into the shower, to reduce visual breaks.
5. Add a compact corner bench, handheld shower, and slip-resistant mosaic floor for comfort without crowding the space.

A 3×5 footprint also meets common rectangular accessibility guidance of 60 by 30 inches, though the final layout must account for local code, drainage slope, wall framing, and bathroom clearances. The eight designs below show how to turn a former tub alcove or compact shower bay into a polished, easy-to-use glass shower.

3×5 walk in shower ideas word roundup:

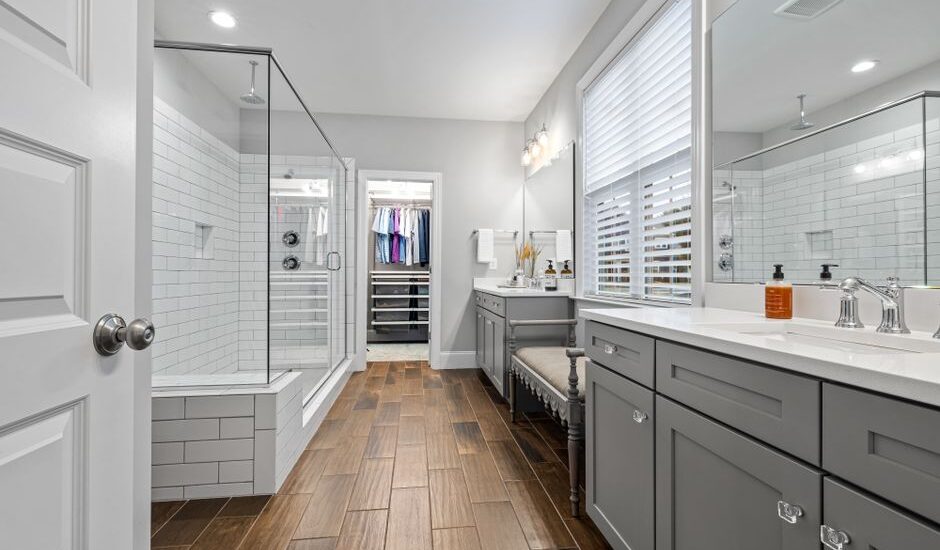

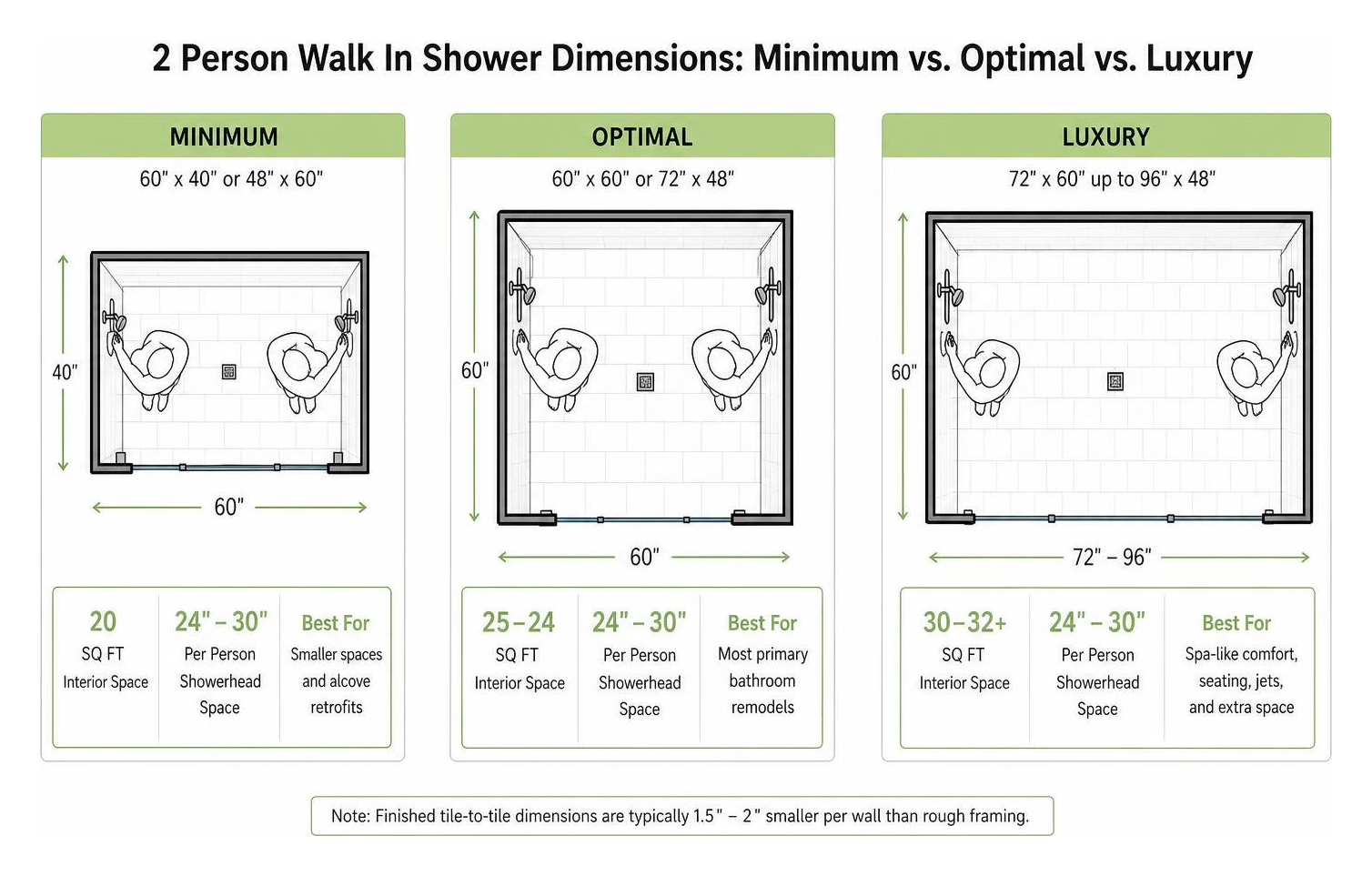

• 2 person walk in shower
• walk in shower

Dimensional Planning: Why the 3×5 Footprint Maximizes Compact Bathrooms

The 3×5-foot shower footprint (36 inches by 60 inches) is a gold standard in modern bathroom remodeling. Why? Because it represents the exact dimensional footprint of the standard alcove bathtub found across North American homes. When converting a tub into a standalone shower, keeping this existing 15-square-foot floor area avoids the immense structural costs of relocating load-bearing partition walls or rerouting primary drain stacks.

Smart spatial planning in compact bathrooms allows a 3×5 layout to fit comfortably even within a modest 5×7-foot overall bathroom. In this setup, placing the shower along the rear 5-foot wall leaves 48 inches of room depth for a vanity and toilet.

When planning your layout, it is essential to review building code clearances. Standard plumbing regulations require a minimum of 15 inches of clear space measured from the centerline of the toilet to any adjacent side wall or glass partition, providing a dedicated 30-inch-wide clearance zone. Ensuring at least 24 inches of clear walkway space in front of the shower opening keeps the room functional and accessible.

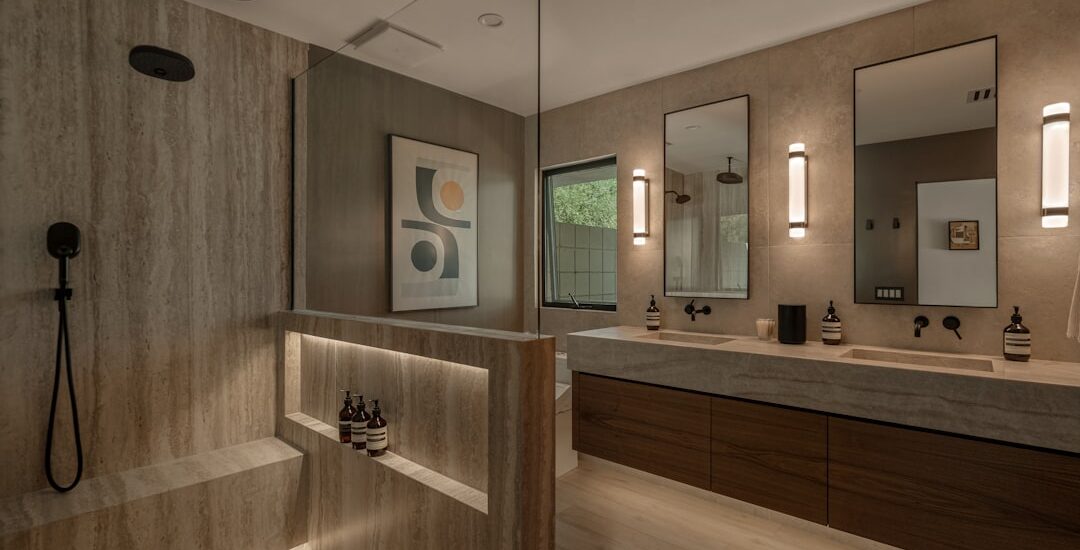

Before finalizing your layout, comparing walk-in shower options helps balance physical clearance with everyday comfort.

Shower Dimensions and Minimum Space Guidelines

Building codes set the absolute bare minimum shower footprint at 32×32 inches. However, a 32-inch square shower often feels restrictive during daily use. The standard comfort benchmark for square units is 36×36 inches, while ADA accessibility guidelines recommend a minimum of 60×30 inches for rectangular showers.

A 36×60-inch enclosure exceeds these baseline requirements:

• Total Floor Area: 15 square feet (36 inches deep by 60 inches wide)
• ADA Guidelines: Surpasses the 60×30-inch minimum for roll-in accessibility and seated bathing
• Elbow Clearance: Ample 36-inch depth prevents accidental bumping against glass panels or controls
• Mobility and Adaptability: Offers sufficient room for a caregiver or mobility aids without crowding the bather

Material and Tile Calculation Breakdown

Accurately calculating tile for standard shower footprints prevents costly delays and over-purchasing. For a standard 3×5 shower with 8-foot-tall walls, the math breaks down systematically:

• Floor Surface Area: 3 ft × 5 ft = 15 sq. ft.
• Gross Wall Surface Area: Two 3×8 walls (48 sq. ft.) + two 5×8 walls (80 sq. ft.) = 128 sq. ft.
• Entryway Deduction: Subtracting an average glass door cutout of 28 inches by 72 inches (~14 sq. ft.) yields a net wall area of 114 sq. ft.
• Subtotal: 15 sq. ft. (floor) + 114 sq. ft. (net walls) = 129 sq. ft.
• Waste Factor: Professional tilers recommend adding a 10% to 15% waste factor for straight-lay patterns (or 15% to 20% for herringbone and diagonal layouts) to accommodate cuts, corner alignment, and breakage.
• Total Tile Required: 129 sq. ft. × 1.12 (12% average waste) = ~145 square feet of tile.

Beyond tile, a 145-square-foot installation typically requires 2 to 3 50-lb bags of modified thinset mortar (each covering 60 to 80 sq. ft.), 1 to 2 units of grout (epoxy is recommended for wet areas), and sufficient liquid or sheet waterproofing membrane to ensure complete moisture defense. Adding built-in niches typically introduces another 2 to 4 square feet of tiled surface.

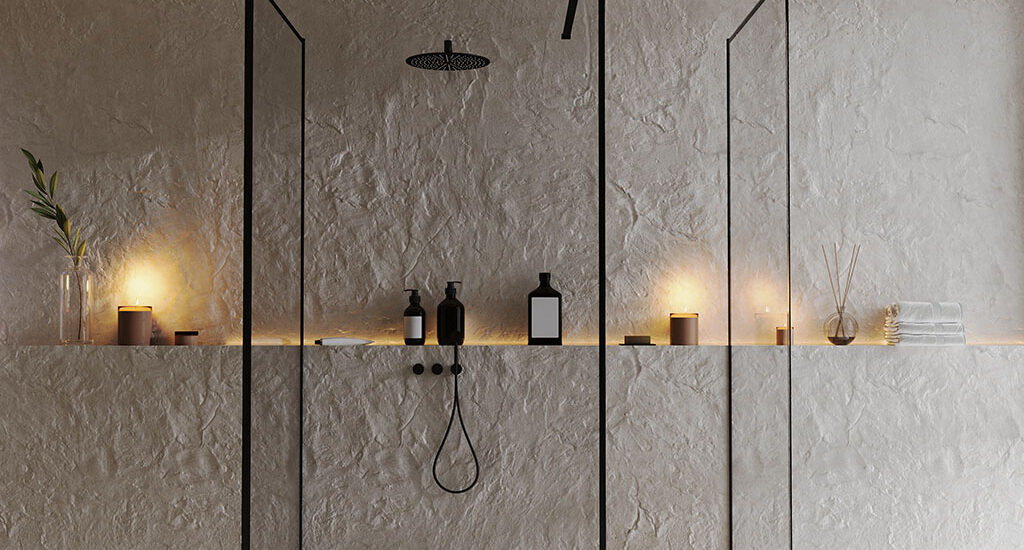

8 Inspiring 3×5 Walk In Shower Ideas for Compact Bathrooms

Transforming a 3×5 space into a spa-like retreat requires the right balance of light, line work, and transparency. Here are 8 distinct design concepts to elevate your compact shower.

Space-Saving 3×5 Walk In Shower Ideas for Small Layouts

1. The Seamless Glass Slider: In compact bathrooms where an outward-swinging door would collide with a vanity or toilet, a top-hung sliding glass system is unbeatable. Discovering the benefits of frameless glass shower doors reveals how clear glass preserves unbroken sightlines, visually doubling the perceived square footage of the room.
2. Vertical Herringbone Accent Walls: Installing slender subway tiles in a vertical herringbone configuration draws the eye upward toward the ceiling, creating an optical illusion of higher walls and greater vertical volume.
3. Monochromatic Color Washing: Using soft neutral or pastel tiles that match the main bathroom paint color eliminates harsh visual borders. This uniform palette allows the entire bathroom to read as one continuous space.
4. Natural Skylight and Clerestory Integration: Introducing overhead daylight through a ceiling skylight or a high frosted clerestory window fills the shower with diffuse natural light while preserving absolute privacy.
5. The Suspended Vanity Pairing: Pairing your walk-in shower with a wall-hung floating vanity outside the glass panel keeps continuous flooring visible beneath the cabinetry, enhancing the sense of open floor area throughout the room.
6. Large-Format Slab Enclosures: Selecting 12×24-inch or larger porcelain tiles drastically reduces grout joints. This delivers a minimalist, uninterrupted aesthetic that is exceptionally easy to clean.
7. Japanese Onsen-Inspired Organic Textures: Incorporate natural stone elements, charcoal slate wall slabs, and subtle matte finishes to create an organic, spa-like sanctuary within a standard 15-square-foot footprint.
8. Integrated High-Contrast Hardware: Pairing ultra-clear architectural glass with matte black or brushed brass hardware gives a custom, designer touch without adding physical clutter. To explore additional layout and glass configurations, check out our custom shower door Chicago solutions and browse through our shower doors Chicago options.

Integrating modern bathroom shower glass enclosures ensures your 3×5 shower achieves maximum visual openness and functional beauty.

Accessible and Universal 3×5 Walk In Shower Ideas

Universal design principles ensure a walk-in shower remains safe, accessible, and comfortable for bathers of all mobility levels:

• Curbless Zero-Threshold Entry: Removing the traditional 4-inch raised curb creates a flush floor transition from the main bathroom into the shower pan, eliminating trip hazards and allowing easy roll-in access.
• Integrated Linear Drains: Installing a single-slope floor directed toward a sleek linear drain along the rear or side wall allows for the use of large floor tiles while delivering rapid, efficient water drainage.
• Slip-Resistant Flooring: Small mosaic floor tiles (such as 2×2 porcelain or honed penny rounds) provide dense grout grids that significantly enhance foot traction.
• Ergonomic Built-In or Teak Seating: Integrating a compact corner bench or a moisture-resistant wall-mounted folding teak seat provides a secure resting spot for washing without consuming precious standing room.
• Recessed Stud-Cavity Niches: Framing recessed niches between standard 16-inch on-center wall studs keeps soaps and shampoo bottles recessed flush into the wall rather than protruding into your showering space.

Glass Doors vs. Doorless Walk-In Showers: Which Works Best?

When planning a 3×5 walk-in shower, choosing between an open doorless design and an enclosed glass door system is a critical decision. In a 5-foot-long enclosure, an open doorless entrance leaves a 24- to 30-inch opening, requiring a planned water splash perimeter.

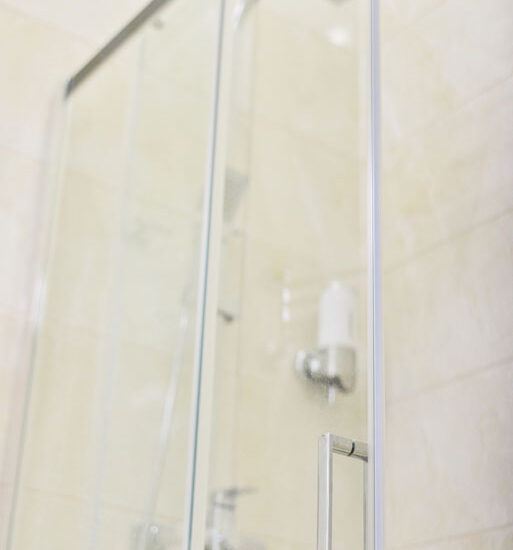

Understanding the distinctions outlined in our guide to glass shower door types will help you select the ideal enclosure for your room’s airflow and layout.

Feature	Doorless Walk-In Shower (Open Walk-In)	Glass-Enclosed Walk-In Shower (Sliding/Hinged)
Water Containment	Requires strategic showerhead aiming and careful floor pitching to prevent overspray.	Excellent. Completely seals splashing inside the 3×5 enclosure.
Drafts & Warmth	Cooler showering experience due to continuous airflow from the room.	Superior heat and steam retention within the showering zone.
Spatial Requirement	Demands a designated 24–72″ splash zone or wet-room waterproofing.	Compact footprint; works effortlessly in standard 5×7-foot bathrooms.
Cleaning & Upkeep	Minimal glass to squeegee, but exterior floors may require regular drying.	Enclosed panels require routine glass squeegeeing or protective coatings.
Accessibility	Complete barrier-free, zero-clearance access.	High accessibility when paired with sliding or wide-pivot glass panels.

For most compact bathrooms, a sliding frameless glass system offers the optimal compromise: it keeps water and warmth contained while maintaining 100% transparent sightlines across the room.

Critical Installation Details and Common Remodeling Mistakes

Flawless walk-in shower construction depends on precision waterproofing, precise slope calibration, and proper ventilation. Reviewing the core advantages of glass shower walls underscores why proper structural prep work is crucial before installing heavy architectural glass.

Key technical standards to enforce during construction include:

• Drainage Slope Calibration: The shower pan must maintain a continuous pitch of exactly 1/4 inch of fall per linear foot directed toward the drain. Inadequate slope results in standing puddles, soap scum accumulation, and mold growth.
• Waterproofing Applications: Choose between bonded sheet membranes or multi-coat liquid waterproofing membranes. Liquid membranes require 4 to 6 hours of drying time between coats and a full 24- to 48-hour cure. Ensure all sheet membrane seams overlap by at least 6 inches. Always perform a 24-hour flood test before setting tile.
• Shower Niche Placement: Position recessed niches at an ergonomic height of 48 to 54 inches above the shower floor. Always frame the bottom shelf of the niche with a slight 1/16-inch downward pitch toward the shower pan to prevent standing water.
• Ventilation Sizing: Small, enclosed shower areas require adequate mechanical exhaust ventilation to prevent moisture build-up. Size exhaust fans to provide at least 1 CFM per square foot of bathroom area (minimum 50 CFM for compact bathrooms).
• Plumbing Rough-In Centering: Position primary showerheads on the short 3-foot wall directed along the 5-foot length, pointing away from the entry opening to prevent water overspray.

Frequently Asked Questions About 3×5 Walk-In Showers

Can a 3×5 walk-in shower fit a built-in bench?

Yes, a 3×5 walk-in shower can accommodate seating, but scale is everything. A full-width bench running along the 3-foot back wall consumes 12 to 15 inches of depth, reducing the standing floor area to 3×4 feet.

A more spatial-efficient choice is a compact triangular corner bench (measuring 12×12 inches) or a wall-mounted fold-down teak seat. These solutions provide convenient foot-propping for shaving and safe seating without cramping your elbow room.

What shower door style works best for a 3×5 layout?

A frameless sliding bypass or barn-door roller system is the top-performing style for a 3×5 footprint. Sliding doors glide parallel along an overhead header bar, requiring zero clearance outside or inside the enclosure.

If your bathroom layout features unobstructed floor clearance, a single fixed glass partition panel (creating a walk-in entry) or a precision-hinged pivot door that swings outward can also deliver an ultra-clean, minimalist aesthetic. Explore our photo gallery to see real-world installations of these door styles.

Does replacing a tub with a 3×5 walk-in shower hurt resale value?

Replacing an unused tub with an upscale walk-in shower typically increases buyer interest and boosts primary bathroom appeal.

The only exception is if the renovation removes the sole bathtub in a family-oriented home. Real estate standards recommend preserving at least one standard bathtub in a secondary or guest bathroom for bathing young children and pets, while prioritizing a walk-in shower in the primary suite.

Conclusion

A 3×5 walk-in shower proves that you do not need expansive square footage to create a spa-caliber bathroom. By combining smart spatial planning, continuous large-format tile, recessed storage, and premium glass enclosures, you can turn a modest 15-square-foot footprint into a bright, open focal point.

At JP Precision Glass, we specialize in precision-engineered, custom-fabricated glass enclosures designed to elevate your home. Whether you are seeking a minimalist sliding door system, a zero-threshold barrier-free partition, or custom architectural glass tailored to exact measurements, our team delivers unmatched craftsmanship. Explore our full range of custom frameless showers to start designing your ideal walk-in shower today.
