Key Features and Benefits of an 860 Pivot Shower Door
An 860 pivot shower door is designed to maximize entry space while maintaining a sleek, modern architectural aesthetic. The defining feature of a pivot door is its hinge mechanism. Unlike continuous piano hinges that run the full height of the frame, pivot hinges mount at the top and bottom corners of the door panel. This design transfers the door’s weight directly into the top and bottom wall profiles or floor structure, creating an exceptionally smooth, quiet swing.
The 860mm width offers remarkable flexibility. It is an ideal middle ground for standard bathroom layouts—significantly more spacious than narrow 700mm doors, yet compact enough to fit comfortably into tight floor plans where a massive 900mm or 1000mm door would create spatial conflicts.
Key advantages of choosing an 860mm pivot enclosure include:
- Generous Door Opening Width: Because pivot hinges can be offset slightly inward from the side frame, they open wide to provide a comfortable, clear entryway (often over 500mm of usable clearance).
- Flexible Layout Configuration: Pivot doors work exceptionally well in three-wall alcove setups. When paired with a matching glass side panel, they easily transform into a stunning corner shower enclosure.
- Superior Water Containment: Precision-engineered magnetic closing strips and durable bottom drip seal strips create a tight barrier against escaping water, keeping your bathroom floor dry even when paired with high-flow showerheads.
- Reversible Design: Most quality 860mm pivot frames feature symmetrical wall profiles, allowing us to install the door to swing open from left-to-right or right-to-left depending on your room layout and fixture placement.

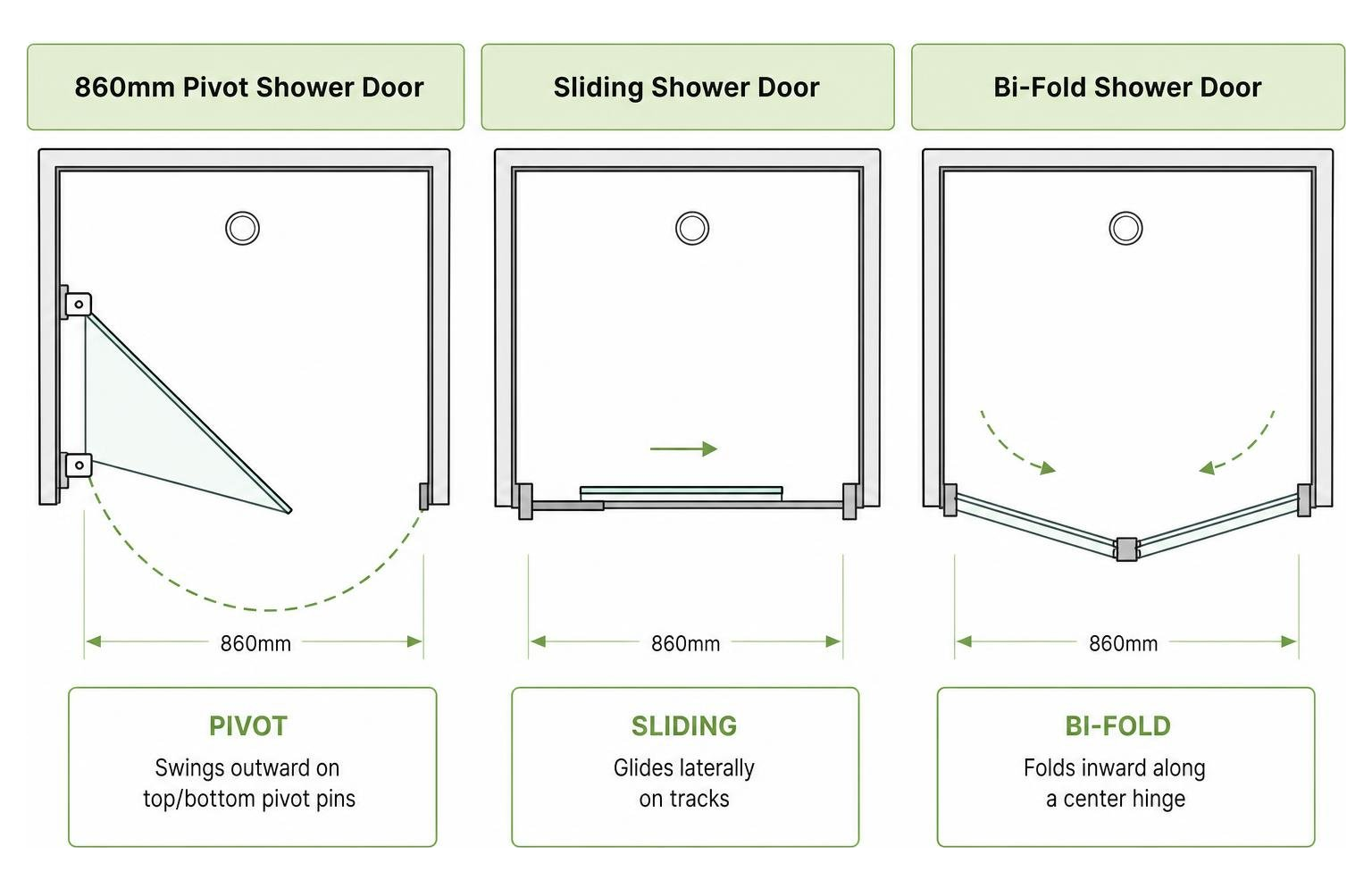

To help you decide whether a pivot door is the right mechanism for your layout, here is how an 860mm pivot shower door compares to other common enclosure styles:
| Feature / Benefit | 860mm Pivot Shower Door | Sliding Shower Door | Bi-Fold Shower Door |
|---|---|---|---|
| Opening Mechanism | Swings outward on top/bottom pivot pins | Glides laterally on tracks | Folds inward along a center hinge |
| Entryway Width | Very Wide (maximizes opening relative to frame) | Moderate (limited by overlapping glass panels) | Wide (folds neatly away) |
| Mechanical Durability | High (few moving parts to wear out) | Moderate (rollers and tracks require cleaning) | Moderate (multiple hinge pivots and guides) |
| Cleaning Ease | Extremely Easy (flat glass surface, no bottom tracks) | Moderate (dirt can accumulate in bottom guide tracks) | Moderate (multiple hinge seal joints to clean) |
| Outward Clearance Needed | Yes (requires space in front of shower) | None (operates entirely within frame envelope) | None (folds inside the enclosure footprint) |
Standard Dimensions and Glass Thickness for an 860 Pivot Shower Door
When specifying an 860 pivot shower door, height and glass thickness are two essential factors that dictate both safety and performance.
Standard heights for pivot enclosures typically range between 1850mm and 1900mm. Selecting a taller 1900mm profile provides enhanced splash protection, keeping elevated water spray contained within the cubicle—a particularly useful feature if you prefer ceiling-mounted rain showerheads.
For the glass itself, 6mm thermally toughened safety glass represents the optimal structural balance for an 860mm door. Thermally toughened glass undergoes a specialized heating and rapid cooling process that makes it up to five times stronger than standard annealed glass.
Using 6mm glass ensures:
- Structural Balance: It provides structural integrity and a solid, premium weight feel without overloading the pivot pin hinges.
- Effortless Operation: Heavier 8mm or 10mm glass panels require heavy-duty architectural hardware; 6mm glass keeps the swing lightweight and smooth for family members of all ages.
- Safety First: In the rare event of damage, toughened safety glass fractures into tiny, blunt granular pieces rather than dangerous sharp shards.
Frame Finishes and Glass Coatings for an 860 Pivot Shower Door
The overall look and long-term maintenance of your shower enclosure depend heavily on the frame finish and surface treatments applied to the glass.
Modern pivot shower doors come in several high-durability hardware finishes to complement your bathroom taps and fixtures:
- Polished Chrome: A classic, timeless mirror-like finish that reflects light and matches traditional or contemporary brassware.
- Matt Black: A bold, modern finish crafted via powder coating or electroplating. It creates sharp architectural contrast against white tiling or marble walls.
- Brushed Brass: A warm, luxurious finish that introduces subtle texture and pairs beautifully with earthy stone tiles and neutral color palettes.
Beyond visual appeal, pay attention to practical surface protection. High-quality 860mm pivot glass panels come treated with an anti-limescale glass coating (often referred to as an easy-clean protective shield). This hydrophobic coating seals the microscopic pores of the glass surface, repelling water droplets, soap scum, and limescale buildup. Instead of clinging to the door, water glides off effortlessly, drastically reducing cleaning frequency and eliminating stubborn water spots.
Comparing 860mm Pivot Doors to Alternative Enclosure Styles
Understanding how spatial dynamics differ across door types helps ensure you select the best fit for your room.
The primary operational detail of a pivot door is its outward swing radius. When the door opens, it swings into the bathroom space. You must ensure that nearby fixtures—such as a vanity, towel radiator, or toilet—do not block the swing path.
When compared directly to Sliding Shower Doors, pivot doors offer a much wider physical opening for the exact same width. Sliding doors require one fixed glass panel for the door panel to glide behind, effectively halving your usable entry space. On an 860mm frame width, a sliding door might only yield 350mm to 400mm of entry clearance, whereas an 860mm pivot door provides a roomy entry opening exceeding 500mm.
Compared to bi-fold mechanisms, pivot doors feature fewer moving mechanical joints. Bi-fold doors fold inward on themselves, which is excellent for spaces with zero outward floor clearance, but the additional hinges, plastic seal joints, and top/bottom runner channels require more frequent cleaning.
If you are looking to maximize visual openness and eliminate bulky metal framing altogether, exploring the Benefits of Frameless Glass Shower Doors is a fantastic option. Frameless or semi-frameless pivot designs allow natural light to flow uninterrupted across the bathroom, making smaller ensuites feel significantly larger.
Choosing the Right Shower Tray and Key Safety Features
Pairing your 860 pivot shower door with the right shower tray ensures long-lasting watertight performance and reliable underfoot safety.
When selecting a shower tray, consider these technical factors:
- Built-in Anti-Slip Surface: Wet tile surfaces and smooth tray bases can become slick. Premium shower bases feature textured non-slip surface technology. Look for trays tested under official safety standards, such as the BS 7976:2 Pendulum Slip Test. While standard building regulations require a minimum slip-resistance score of 35, high-performance anti-slip trays can achieve pendulum scores over 70, offering extraordinary traction underfoot.
- Composite Tray Materials: Modern shower trays utilize advanced mineral resins or aerospace-grade composite materials. These composite trays are up to 60% lighter than traditional stone resin bases while maintaining immense structural rigidity and impact resistance.
- Low-Profile vs. Raised Mounting: A low-profile tray (typically 25mm to 40mm high) offers a modern, step-free threshold that integrates seamlessly into timber floors. However, if you are installing on a solid concrete floor where plumbing pipes cannot be recessed beneath the floorboards, choose a raised tray kit with leg sets and removable plinths to comfortably accommodate under-tray waste pipework.
- High-Flow Waste Systems: Pivot shower doors allow full water flow across the enclosure footprint. To prevent water pooling inside the tray, pair the tray with a rapid high-flow waste system capable of clearing at least 32 liters per minute.
Installation Considerations and Maintenance Best Practices
Proper installation guarantees a watertight enclosure and smooth, quiet door operation for years to come. Whether you are installing a standard kit or choosing custom solutions like our Shower Door Replacement Chicago services, paying close attention to site preparation is key.
Essential Installation Adjustments
- Alcove Alignment and Adjustment Ranges: Bathrooms are rarely perfectly square. High-quality shower door wall profiles offer built-in lateral adjustment (typically 15mm to 20mm per side) within the vertical channels. This allows us to compensate for out-of-plumb walls without leaving unsightly gaps.
- Tiling Allowance: Always measure your opening after tiling is completely finished. Tile thickness and adhesive layers can easily reduce an 860mm rough opening by 15mm to 25mm.
- Reversible Hanging: Verify the swing orientation before securing the wall profiles. Depending on towel bar locations and light switches, reversing the pivot block placement lets you choose whether the door swings left or right.
Maintenance Best Practices
To keep your pivot door operating smoothly and looking crystal-clear, adopt a quick maintenance routine:
- Daily Squeegee Routine: Wipe down the inner glass face with a soft rubber squeegee after every shower to prevent mineral deposits from drying on the glass.
- Microfibre Care Routine: Clean the aluminum wall profiles and hardware with warm water and a soft microfibre cloth. Avoid harsh abrasive chemicals, bleach, or scouring pads, which can degrade protective anodized or electroplated hardware finishes.
- Inspect Magnetic Seals: Clean the bottom drip vinyl fins and magnetic door closures monthly to prevent soap residue buildup. If seals eventually harden or discolor after years of heavy use, you can easily Replace Glass Shower Door vinyl seals to restore a factory-fresh watertight fit.
- Check Pivot Pins: Periodically check the top and bottom pivot hinge screws to ensure they remain tightened to spec, guaranteeing perfect alignment over time.
Frequently Asked Questions About 860mm Pivot Shower Doors
How much opening clearance is needed for an 860mm pivot shower door?
Because an 860mm pivot door swings outward into the room, you should allow at least 500mm to 600mm of clear, unobstructed floor space directly in front of the shower door. Always check that the door will not strike vanities, toilets, heated towel rails, or bathroom entry doors when fully opened.
Can an 860mm pivot shower door be installed in an alcove?
Yes! Alcove installation (a three-solid-wall setup) is the most popular installation method for an 860mm pivot door. The door frame mounts securely between two opposite tiled walls, utilizing adjustable wall channels and vertical continuous magnetic seals to create a completely watertight shower room.
What factors influence the cost and quality of an 860mm pivot door?
Key quality factors include:
- Glass Specification: Thermally toughened safety glass with pre-applied anti-limescale coatings.
- Hardware Materials: Heavy-duty brass or aluminum pivot blocks versus plastic core hinges.
- Frame Engineering: Thickness and adjustability of wall profiles, as well as high-grade magnetic vinyl seals.
- Customization: Standard off-the-shelf sizes versus precision custom-cut glass designed to fit custom openings perfectly.
Conclusion
An 860 pivot shower door combines spatial efficiency, smooth mechanical operation, and sleek modern design. Whether you are building an alcove shower setup or replacing an old enclosure, choosing quality 6mm toughened safety glass, durable metal finishes, and a high-performance anti-slip base ensures your bathroom remains safe, comfortable, and stylish for years to come.
